PT. Dynagear Pandu Pratama provide AC Aluminum and AC Iron Gear Motors manufactured by Transtecno. The following are the products we provide from Transtecno. From standard gearmotors to entire series for specific markets right through to specially tailored projects – the Transtecno range includes state of the art products characterised by high technical standards.
The IRON range includes ITH inline speed reducers, ITB bevel helical gear reducers and ITS parallel shaft gear reducers. The range is all built in ultra-strong cast iron, for torque levels up to 3500 Nm (31.000 lb-in).
The ITH gear motors are for industrial applications with particularly heavy loads. Their robust cast iron housings and highly modular different input and output kits mean they are suited to all types of application. The ITH helical gear reducer series consists of 4 sizes: ITH 112/3 – ITH 122/3 – ITH 132/3 – ITH 142/3. Transmittable torques are: 700 Nm, 1000 Nm, 1800 Nm and 3500 Nm, respectively.
Specification:

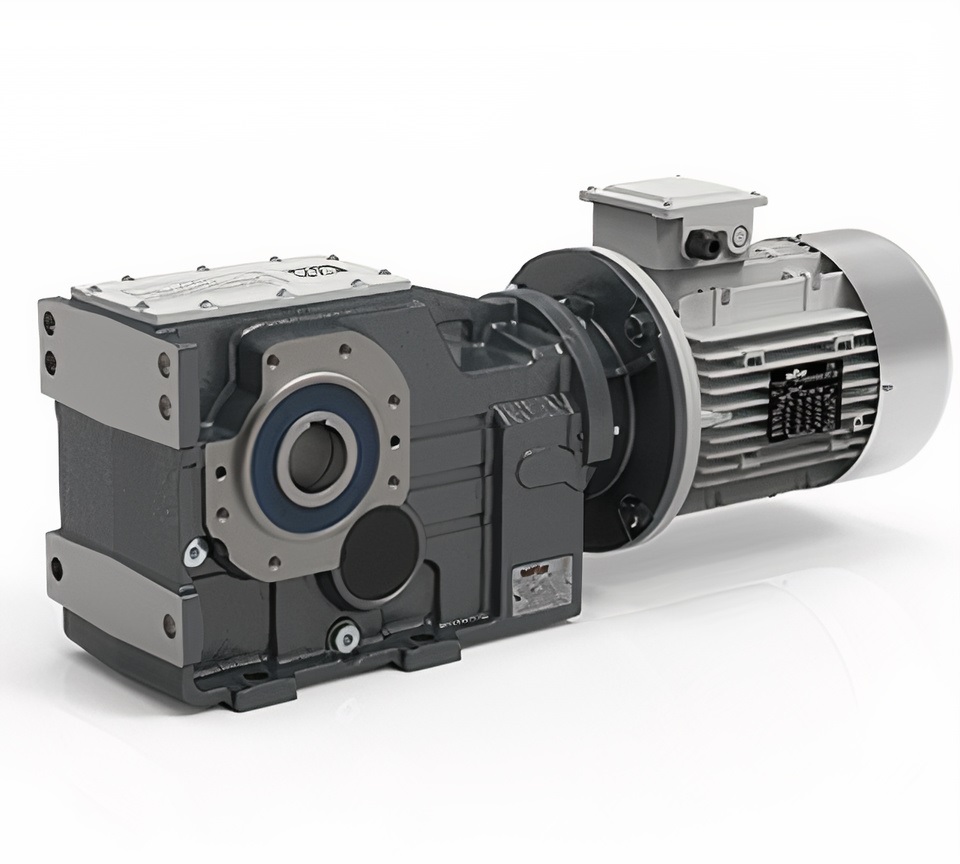

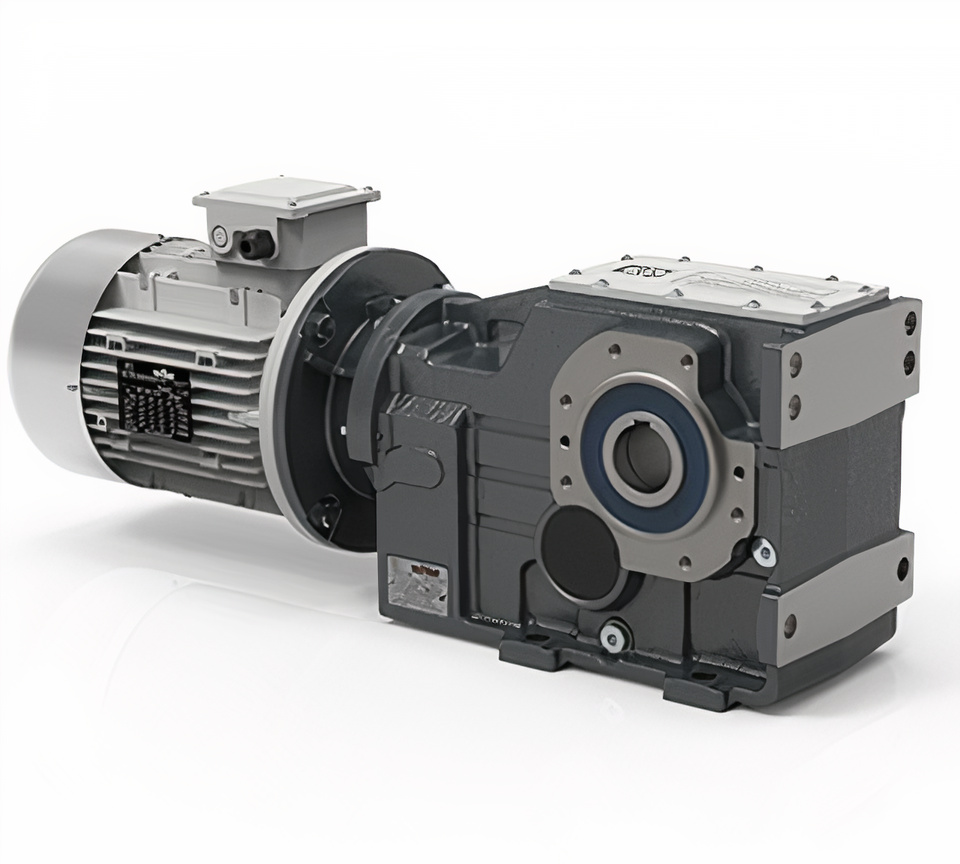

The bevel helical gear reducers from the ITB series are specifically for heavy-duty industrial applications. The robust construction using a cast iron case, combined with the high degree of modularity from the different input and output kits, make these reducers perfect for all types of application. This gear reducer is an integral part of the IRON range that together with the ITH and ITS series, complete the cast iron offer from Transtecno. The ITB bevel helical gear reducer series includes 3 sizes: ITB 423 – ITB 433 – ITB 443. The torques are 950 Nm, 1800 Nm, and 3500 Nm respectively.
Specification:

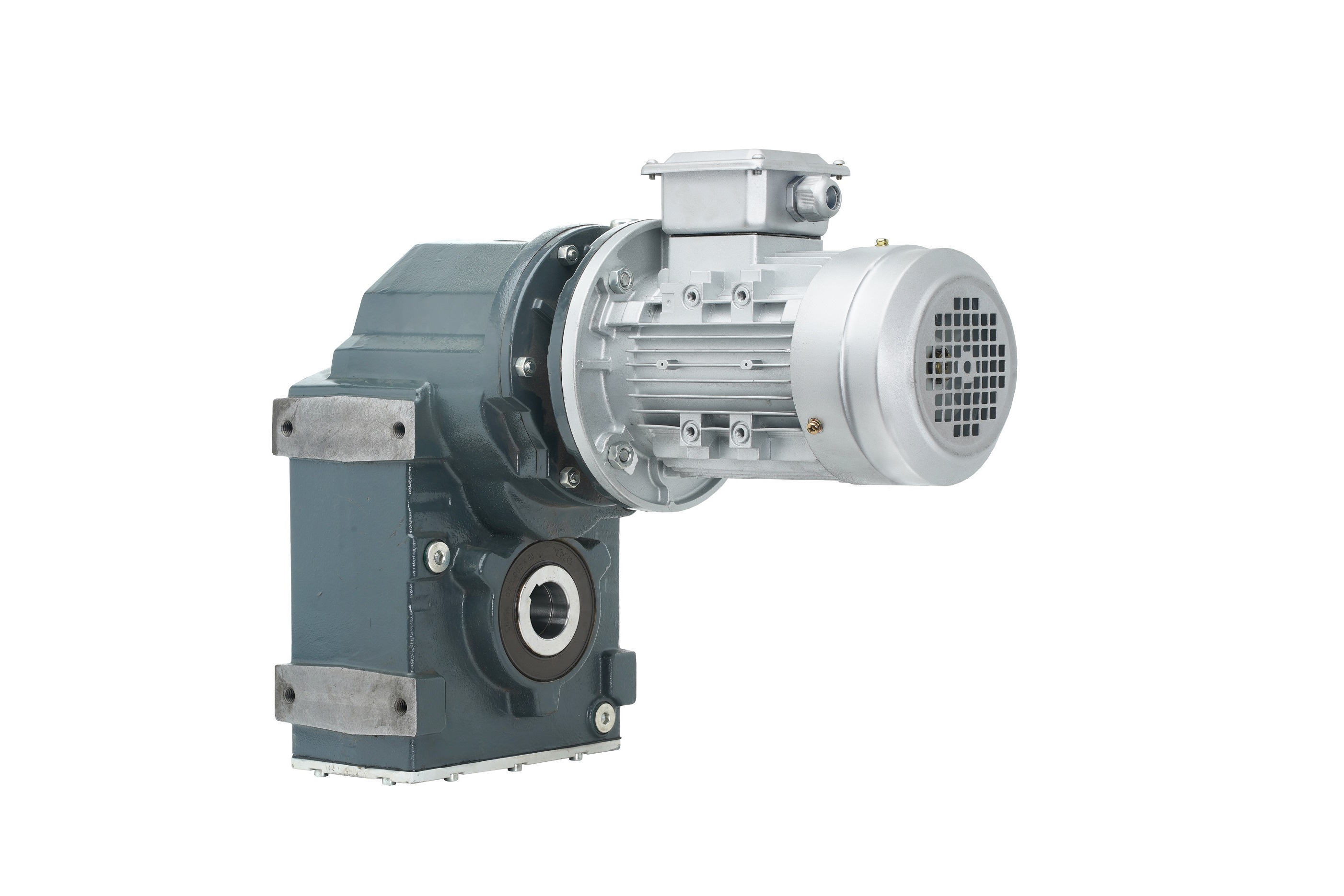

The cast iron parallel shaft gear reducers from the ITS series are specifically for heavy-duty industrial applications. The robust construction using a cast iron case, combined with the high degree of modularity from the different input and output kits, make these gearboxes perfect for all types of application. The series of ITS parallel shaft speed reducers are made with two type of case – universal, with feet and flat side flange on one side only, or pendant, without feet and side flat flange on one side only. 3 sizes: ITS 922/3 – ITS 932/3 – ITS 942/3. The torques are respectively 1100 Nm, 1700 Nm and 3200 Nm.
.jpg)
Specification:
Inline and bevel helical gear reducers, parallel shaft speed reducers, and worm gear boxes with AC motor. The range is built in aluminium and covers torques up to 1000 Nm (8.800 lb-in).

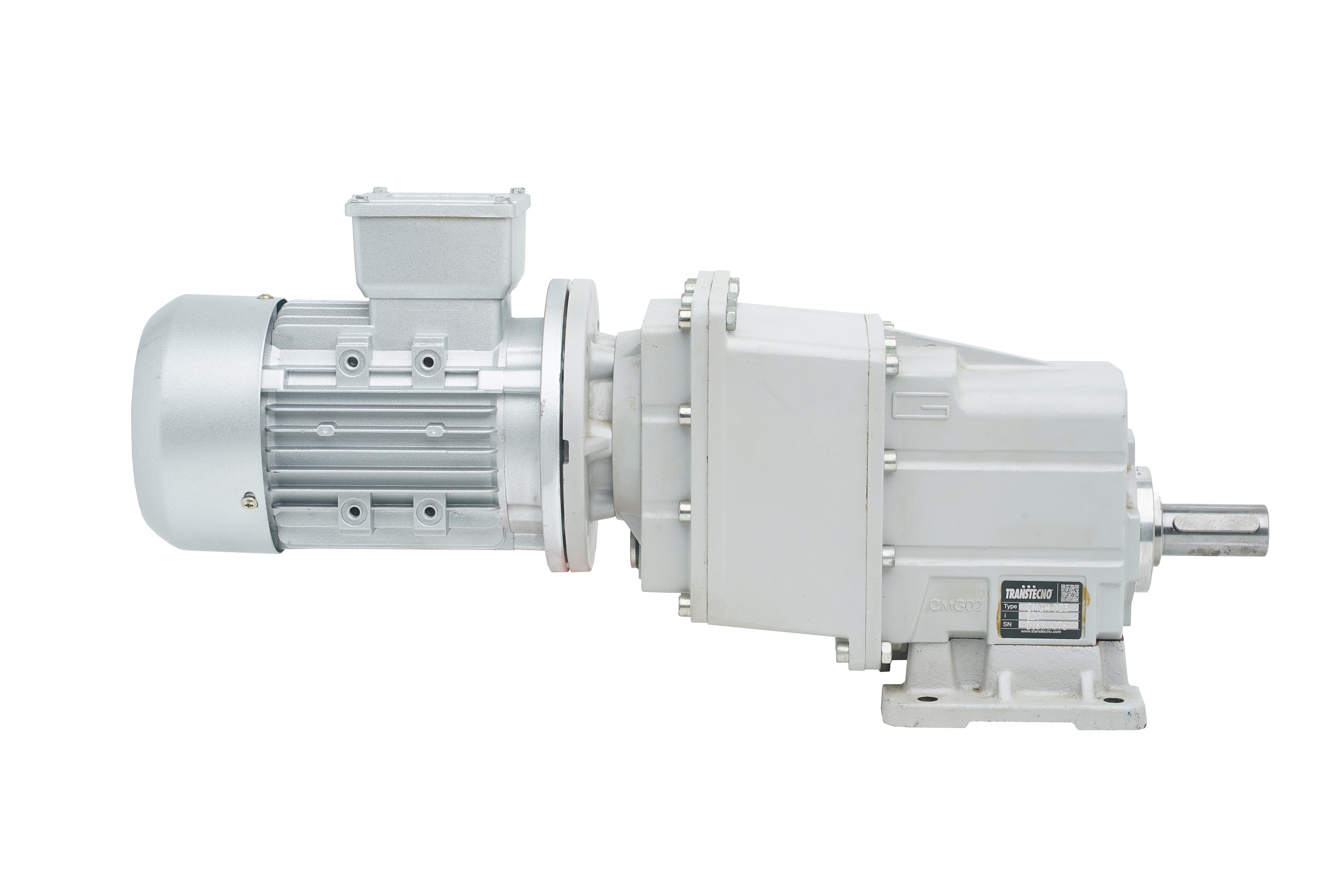

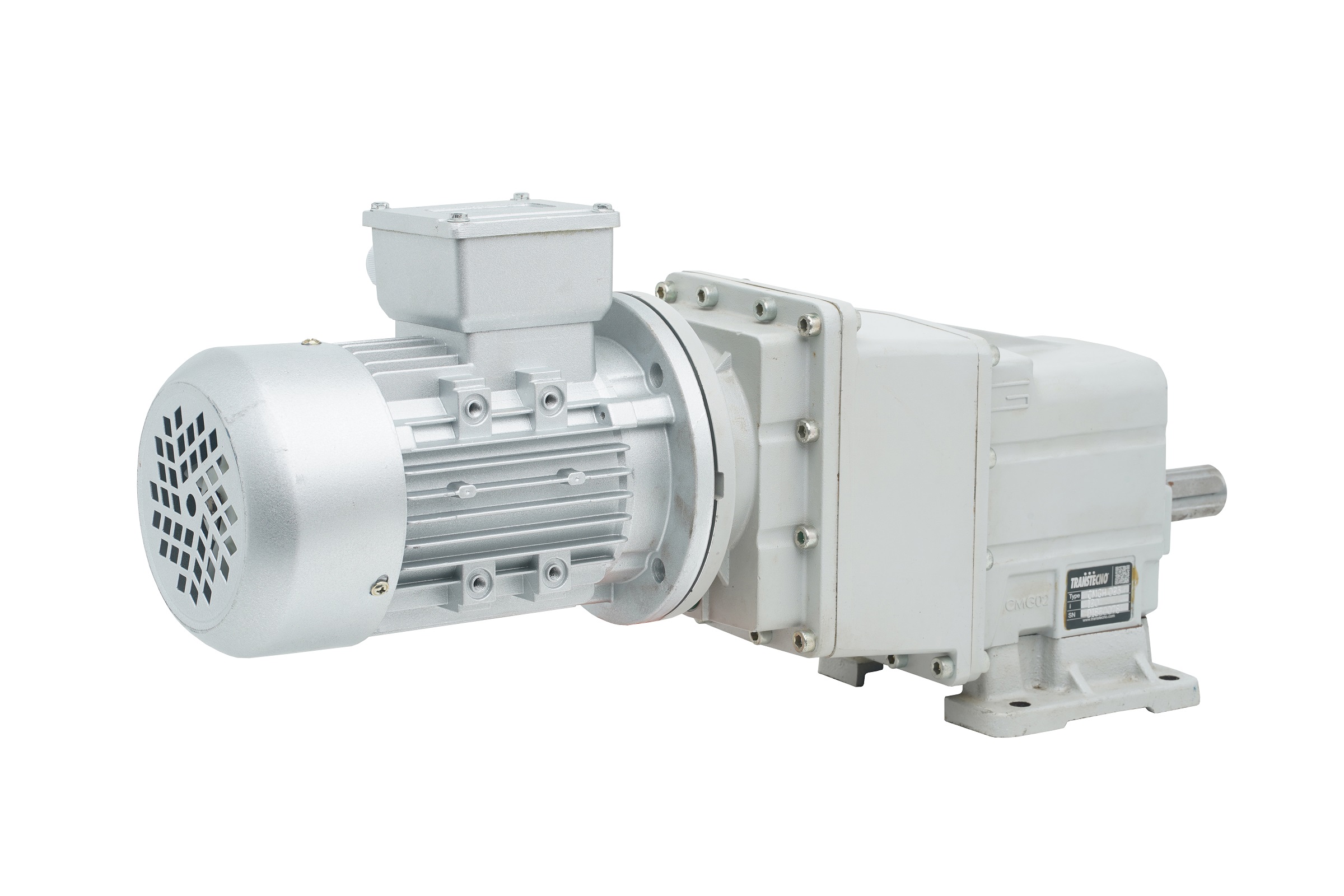

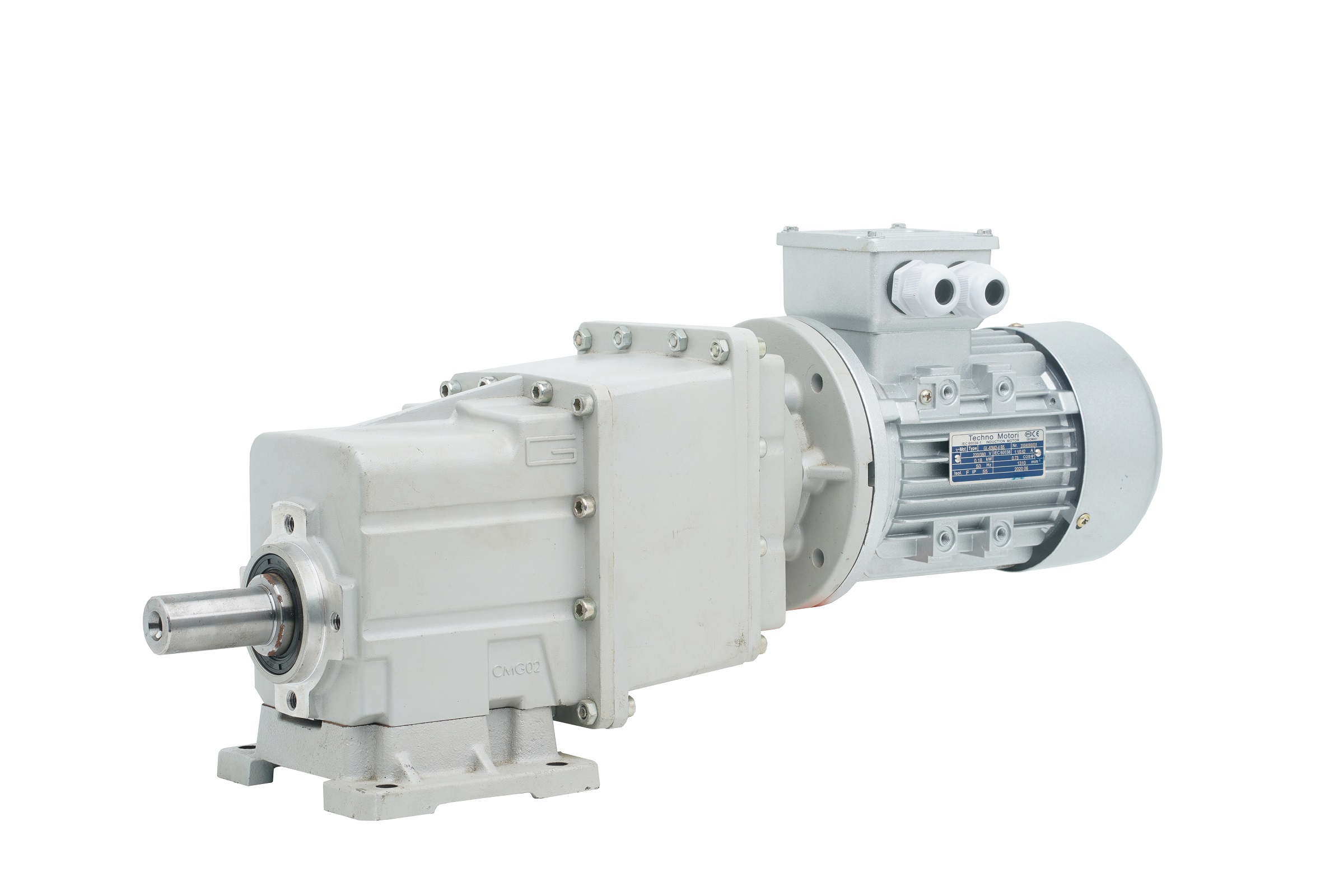

The high degree of modularity is a design feature of CMG helical in-line speed reducers and geared motors range. It is possible to set up the version required using flanges or feet.
Specification:

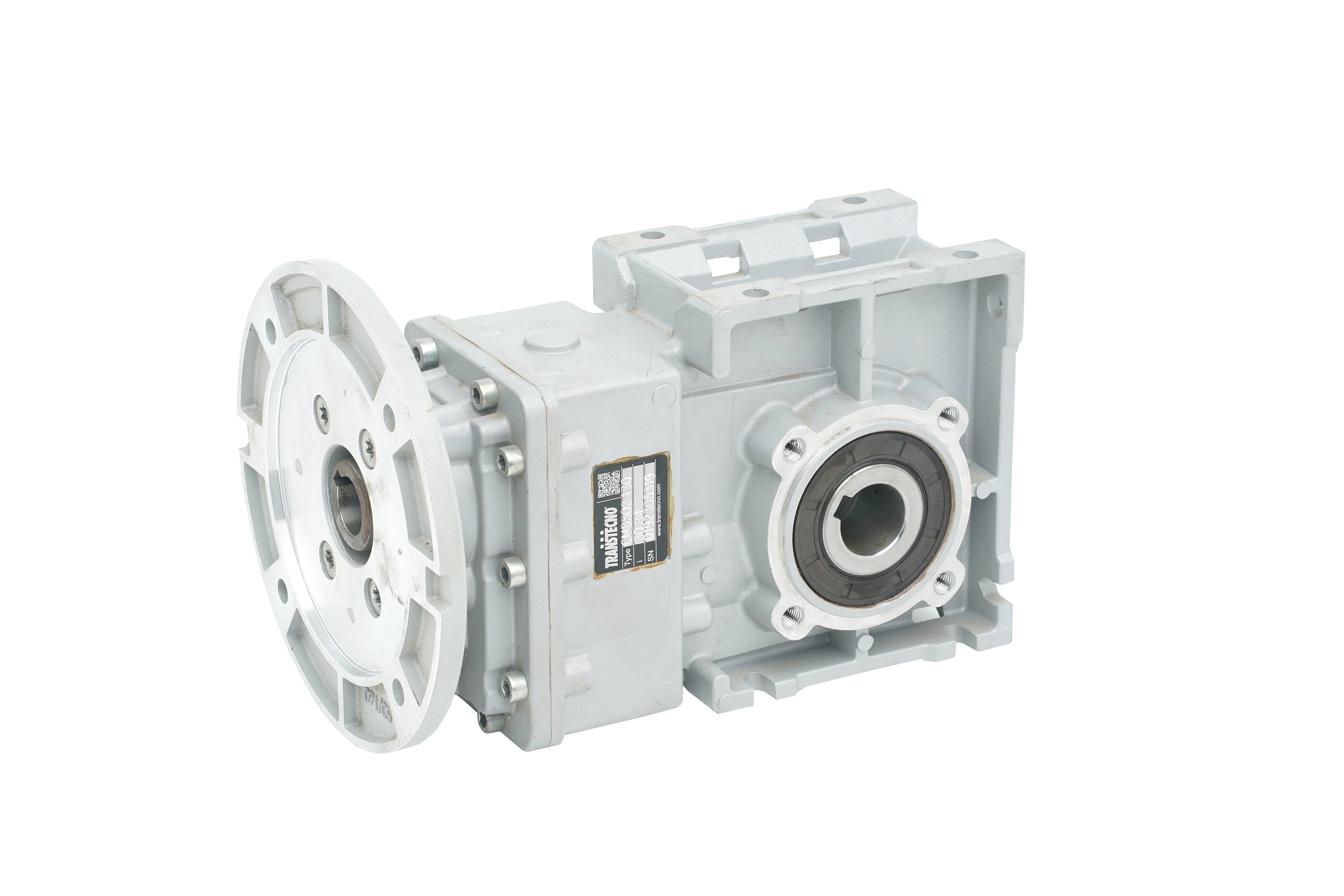

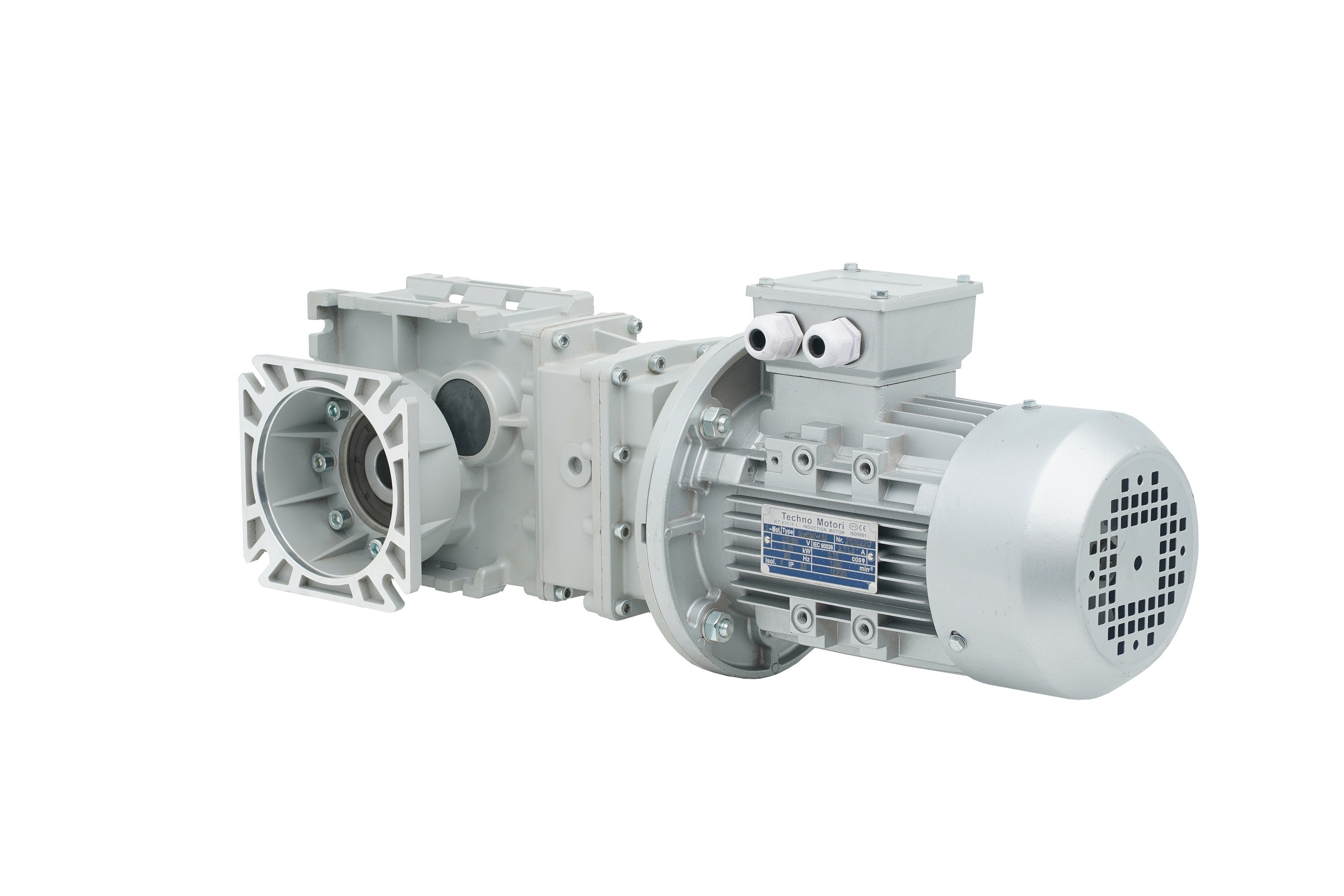

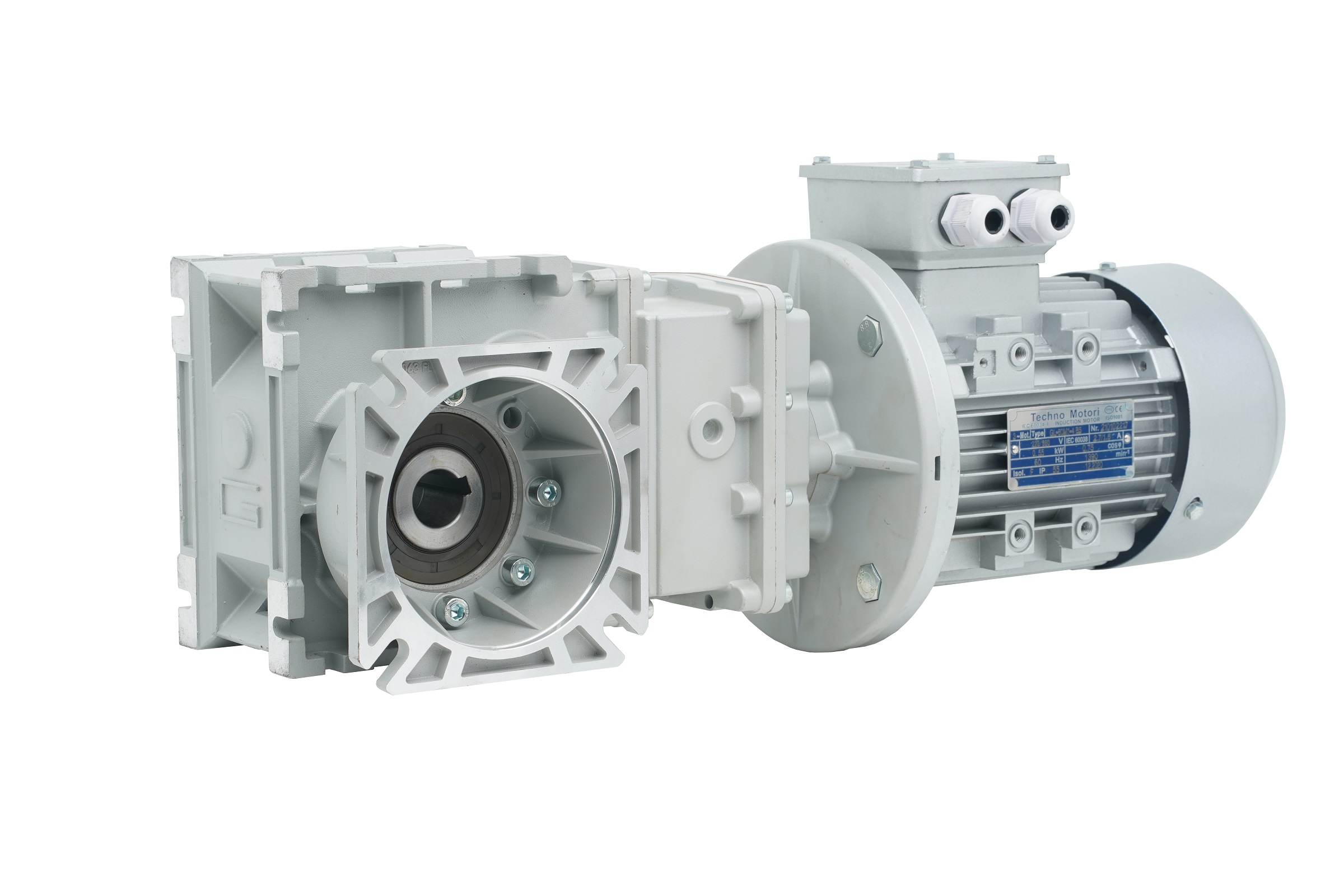

The high degree of modularity of CMB helical bevel gear drives allows it to be completely interchangeable with CM worm gear boxes. It is possible to set up the version required using output flanges, output shafts and optional torque arms. CMB helical bevel gear motors consist of AC motor and helical bevel gear drives.
Specification:

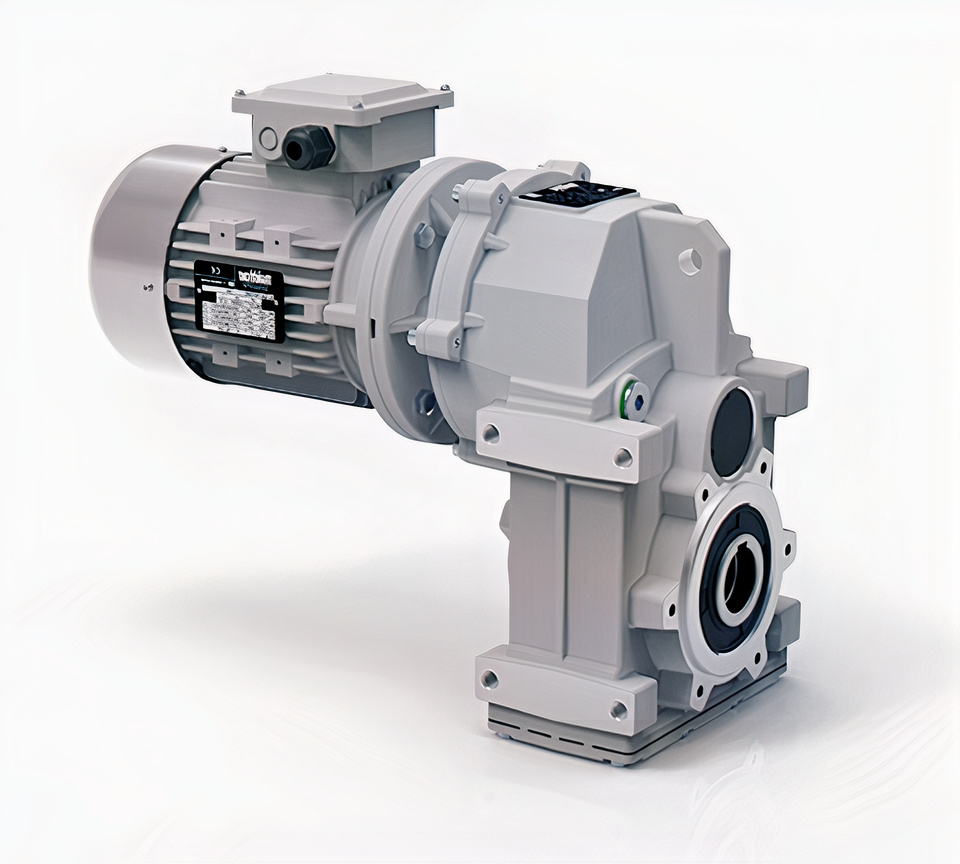

Helical parallel shaft gear reducers from the ATS series are characterised by a high degree of modularity: starting with a basic body, it can be configured as needed, using different input and output kits.
Specification:

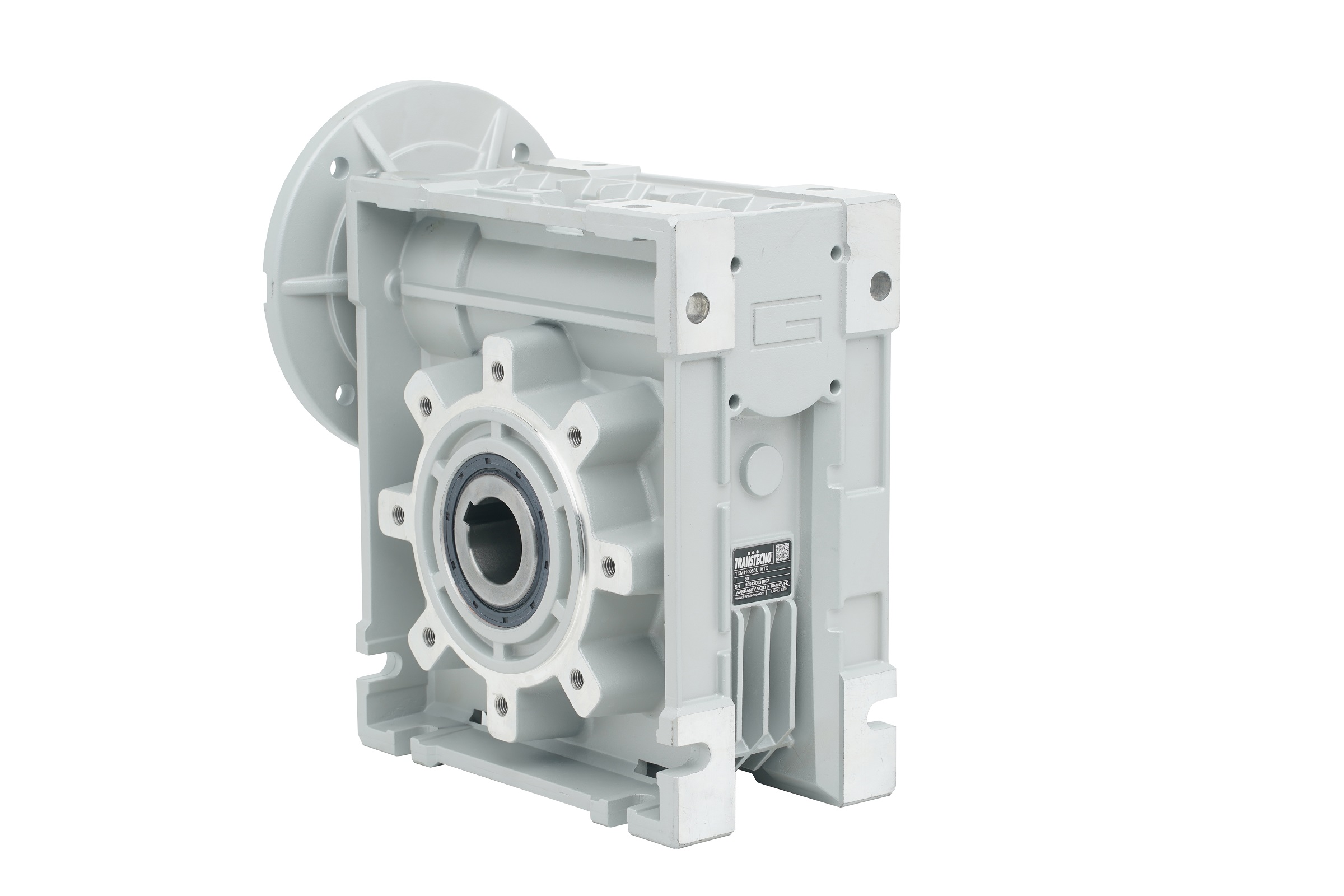

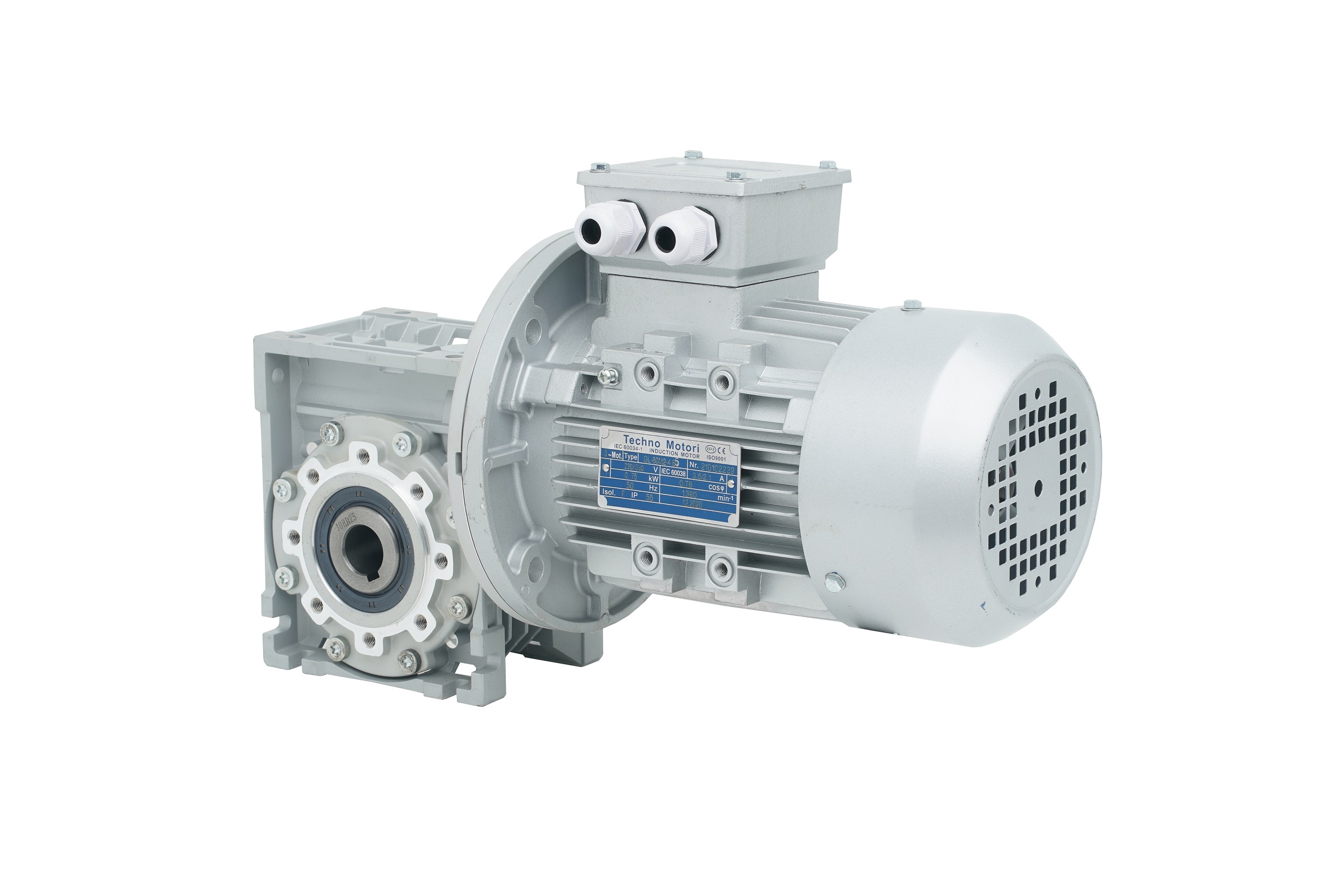

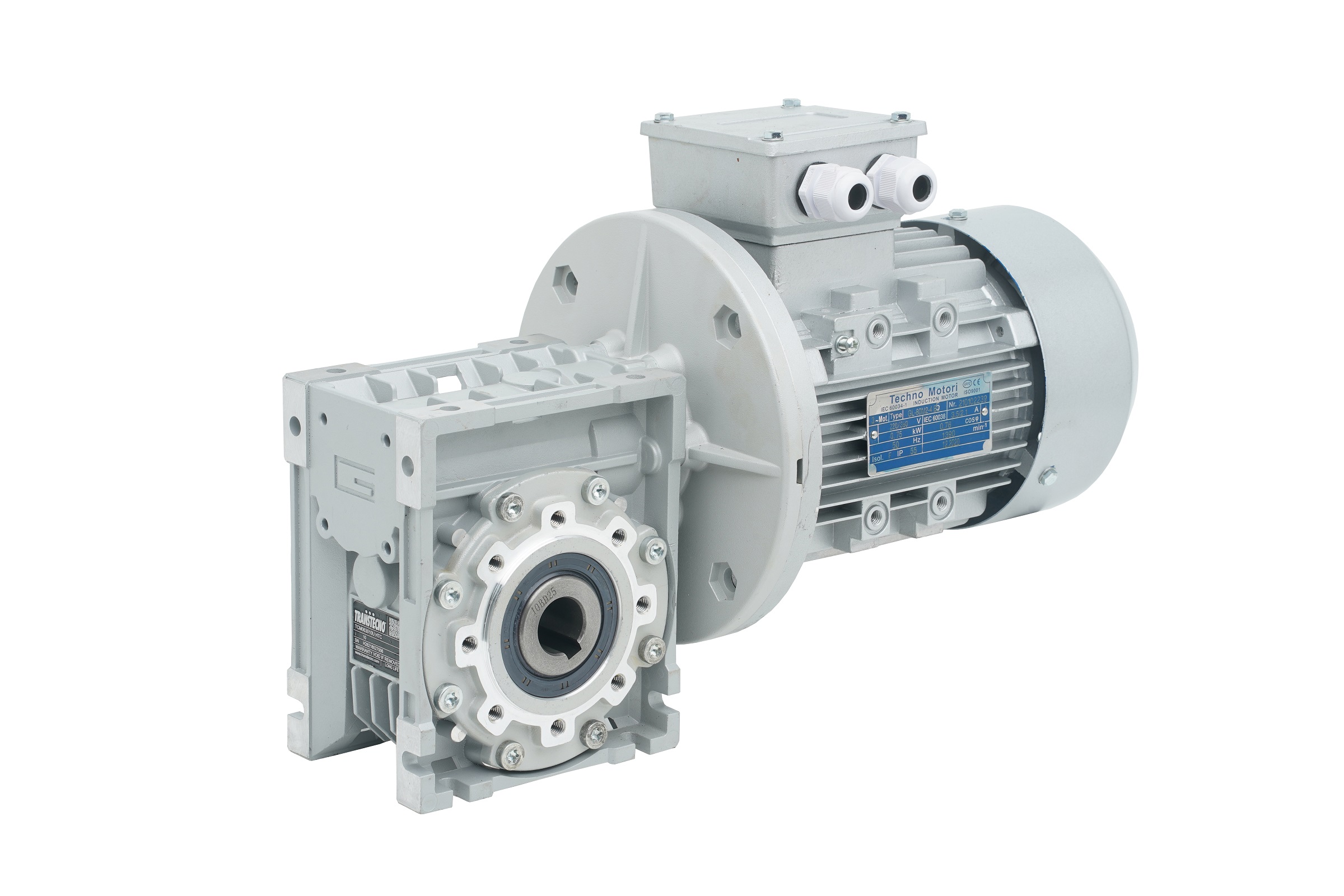

Worm gear boxes from the CM series and AC electric motors are used to make these gear motors. The CM is one of Transtecno’s most widespread gear boxes and is available in 10 sizes, from CM026 to CM130, made extremely versatile using different input and output kits for worm gear boxes. The technical characteristics are shown below, and it is also possible to download the catalog of worm gear boxes and to consult the 2D -3D models from this range.
Specification:

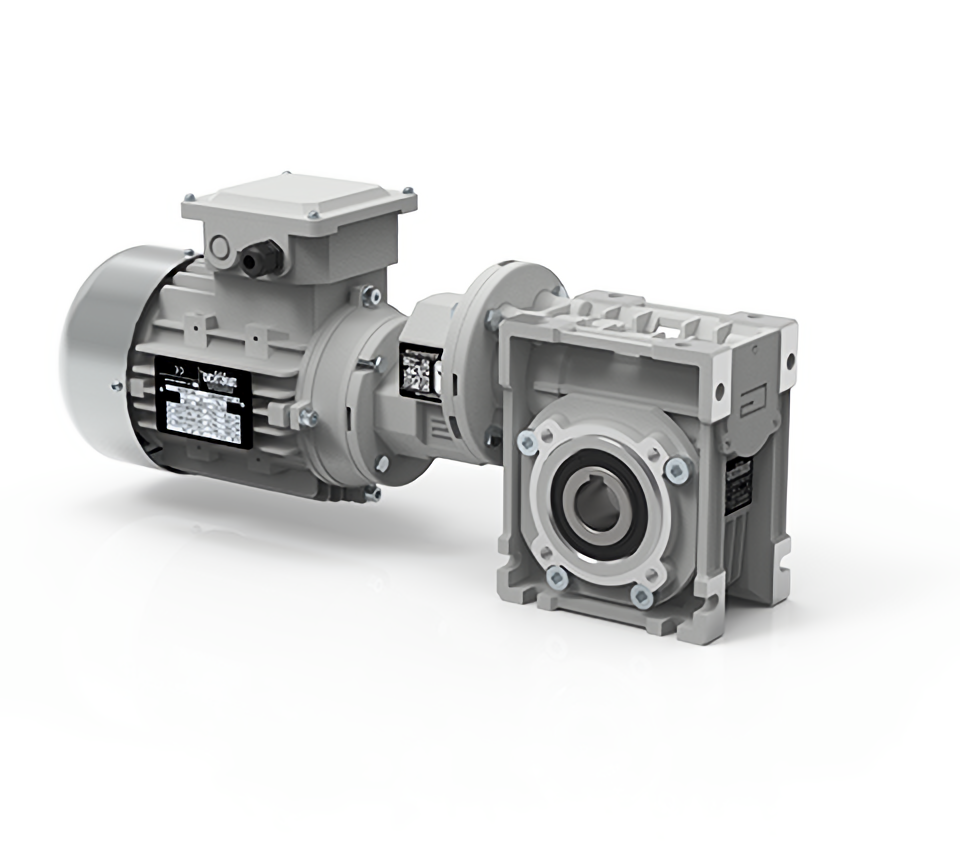

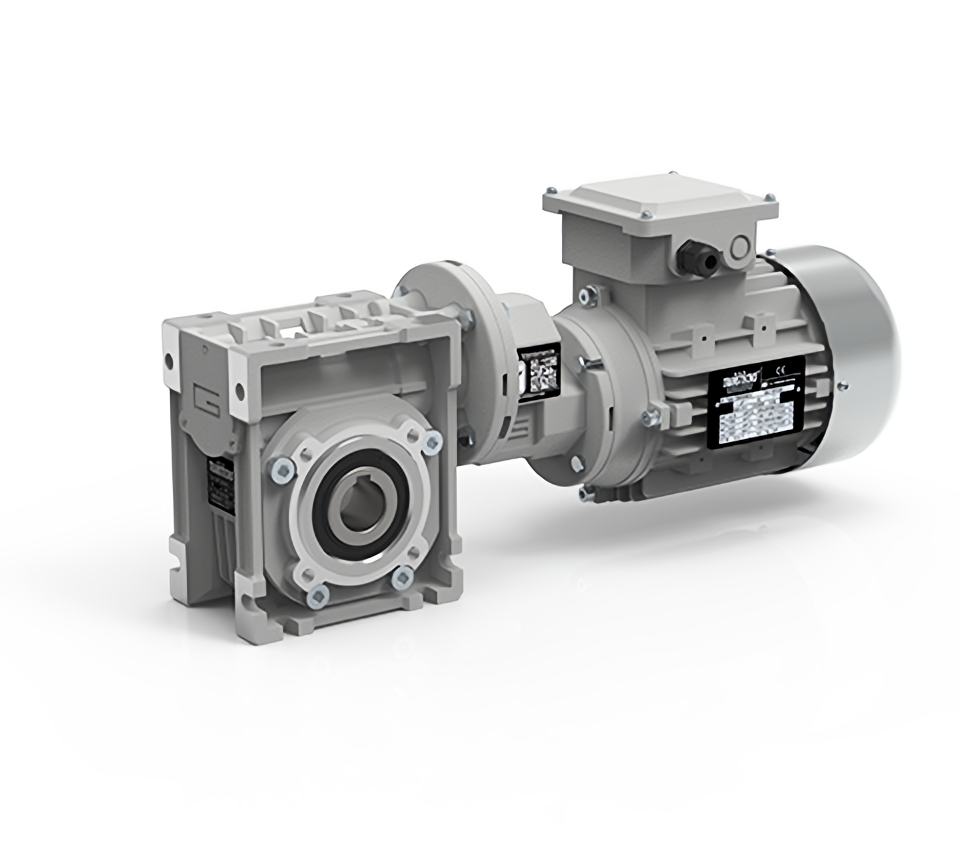

The Pre-stage worm gear boxes from the CMP series consist of a worm speed reducer and an AC motor, with pre-stage between them with a unique gear ratio of i=3. Some characteristics of the pre-stage include ground gears with low noise level, compact design, and lifelong lubrication. The pre-stage has a single output bearing and therefore, it can only be used between the motor and the gearbox.
Specification:
The Double Reduction Worm speed reducers from the CMM series combine two worm speed reducers and an AC motor, for worm gear motors with a high torque level. The technical characteristics of this gear motor unit.
Specification:
The single-stage helical gears from the PU series are an integral part of the ALU AC gear units series. The carcase and flanges are in aluminium, the design is compact, and the construction layout makes it possible to use the PU gear box on its own or with other gearboxes.
Specification:
The high degree of modularity of CMB helical bevel gear drives allows it to be completely interchangeable with CM worm gear boxes. It is possible to set up the version required using output flanges, output shafts and optional torque arms. CMB helical bevel gear motors consist of AC motor and helical bevel gear drives.
Specification:
